We just got back from Moab. I scratch and bounced off all the protection we have. The RCI rock rails got a slight scratch.

All our Foutz protection got hit. The lower shock mounts at least twice, the diff cover (twice) the rear trailing arm brackets got hit a lot (four times each side) and their large aluminum skid got scratch (twice?) and one hard smack (once). I will have to take some pics.

The smack was on the last ledge on the last trail in view of the parking lot below. I wasn't paying attention and talking with my wife and bang. Real hard. Slightly dented the skid and big scratches just below the cross member that don't have protection.

I was there a few weeks ago by myself for three days and my wife and I were there for a week about a week ago and have been travelling since.

I took a guy out when I was there by myself and we scraped a fair bit and he said that protection has paid for itself easily. I agree.

I will do a summary of the trip one day soon. It was awesome as we still have a bit of travelling to finish.

Look at FMI, Foutz Motorsports. I know others here have their stuff. It is solid and it seems to be one of the best.

I just clicked on your links. Get them you will be happy.

  • Thread Starter
  • Thread starter
  • #3

Roughstock

Thanks for the input, and what is needed in the real off road world.

Ok, Paul Harvey, tell us which trails you were on.
And now for the rest of the story…. We’re showing some age here…

I have Foutz rear Shock skids, rear lower arm bracket skids and the rear diff cover as well as RCI sliders. All took hits last week in Moab and Kanab, with one particularly nice shred of the drivers lower arm Skid HDPE. But I didn’t get a chance to assess much else as I left my ride in Moab with a dead (and unattainable) alternator.

All the skids are doing their jobs, but I also feel like I take more minor hits from the loss of clearance from installing the skids. I’ll be doing a mild lift and bigger tires in a future end of season upgrade.

I didn’t see it on your list, but the Foutz Rear lower arm bracket skids, might be the most useful. Those brackets have a very steep forward edge and like to get hung on big ledges, etc. the HDPE makes for a surprisingly smooth slide over FWIW

Last edited:
Things that go bump…. Front bash plate was from two different hits after an overly spirited exits from a wash. The FMI bracket skids, FMI diff skid and the FMI shock mount skids are taking some hits and doing their job. Probably would be less scrapes without them as they all reduce some clearance to provide great protection


I’ve got a variety of scrapes on the OEM gas tank, tranny and transfer case skids, but no significant damage. LCAs are taking some hits. Only one scrape on my winch mount from a very steep incline transition.

OEM modular bumper is untouched, but I had the ends off for quite awhile. I had scraped my rear bumper and especially the recovery hoops. I replaced it with ADD Rock Fighter and it’s clean (although I have bent the crap out of my license plate numerous times).

RCI sliders have taken a few drops and pivots, the powder coat is scuffed but no structural damage

I probably wheel my Raptor a lot more than most owners, but while I try to limit damage I’m a terrible driver, so stuff happens…. Here’s pictures of what you might expect as you plan your add ons…


fMI shock mount skid

FMI Diff skid

FMI lower control Arm skid and RCI frame mount slider


why I think painting the bash plate is silly…


LCA the worse one by far

stock skids


another FMI rear control arm skid


cross brace is exposed, OEM skids leave this exposed, but only one decent hit so far

the other FMI shock skid


Attachments

  • IMG_2232.jpeg
    347.2 KB · Views: 2
  • IMG_2253.jpeg
    270.1 KB · Views: 3
I would hate to see what the trail looks like 🤣 Gold star and blue ribbon to you for getting your money’s worth not only out of that heroic Raptor of yours but also the arsenal of after market protection components you equipped it with. Well played sir, well played!

I have the Whipple tune and intercooler. They really wake up the BRaptor. It's worth the money. The tune eliminates the downshift harshness in sport mode as well as improves the transmission response with added torque.

I have installed the Borla 140934 last night but still need to do final alignment adjustments and final torque down. I did a couple of brief startup's during installation and I think I'm going to "Love it".

Call Lethal Performance or Ford Performance to ask about the warranty. My understanding is Ford Performance has the Whipple Tune, and maybe others, so that future Ford Performance software updates don't compromise the engine durability when the Whipple Tune is already installed. 24 years ago I installed one of the early Whipple superchargers on my GMC truck, after 20 years and almost 300k trouble and incident free miles, it was the best automotive upgrade I ever installed. There may be a faster tune at the track, but Dustin Whipple tunes offer great daily driver torque in the rpm range where you will use it on every drive.

  • Thread Starter
  • Thread starter
  • #11
TurboS;
Thanks, I did order the Borla:
Borla Cat-Back Exhaust System ATAK 2022-2024 Ford Bronco Raptor | bor140935
I ordered the high clearance climber, Version.

I also ordered the FMI Parts:

2022 + BRONCO RAPTOR REAR LOWER ARM FRAME GUARD WITH HDPE SLIDE

2022 - UP BRONCO RAPTOR REAR SHOCK SKID KIT

2022 FORD BRONCO RAPTOR REAR DIFFERENTIAL SKID PLATE

I am mostly in on the Whipple tune, I did talk to a Ford dealer, and they said it's a dealer decision to with the warranty and the Whipple Tune. if It's something the Tune changed that can be suspected of the failure, it might disqualify the warranty.
They did say that it may report to FordPass its the Whipple tune is installed.

  • Thread Starter
  • Thread starter
  • #12
I have installed the Borla 140934 last night but still need to do final alignment adjustments and final torque down. I did a couple of brief startup's during installation and I think I'm going to "Love it".

Call Lethal Performance or Ford Performance to ask about the warranty. My understanding is Ford Performance has the Whipple Tune, and maybe others, so that future Ford Performance software updates don't compromise the engine durability when the Whipple Tune is already installed. 24 years ago I installed one of the early Whipple superchargers on my GMC truck, after 20 years and almost 300k trouble and incident free miles, it was the best automotive upgrade I ever installed. There may be a faster tune at the track, but Dustin Whipple tunes offer great daily driver torque in the rpm range where you will use it on every drive.
Thanks for the update.
So how was the sound improved?

Thanks for the update.
So how was the sound improved?
At startup the normal mode is louder, enough that most may leave in normal mode, has the Borla ATAK tuned rasp to it, Sport is even louder and more of the rasp, Baja is deeper and possibly not a much rasp. I'm thinking I may like normal and sport modes the best, but a idle it's too early to tell. My preference may change once it's on the road and the turbos and rev's spool up.

  • Thread Starter
  • Thread starter
  • #14
Thanks for the information. It will be interesting to see what the Intercooler and tune do together for HP increase.
I was told the S&B cold air intake added 17 HP, but no torque to the Braptor.

Last edited:
  • Thread Starter
  • Thread starter
  • #15

Attachments

  • 060224.jpg
    314.4 KB · Views: 9
  • 060224a.jpg
    331.5 KB · Views: 9
  • 060224a.jpb.jpg
    199.1 KB · Views: 9
  • Thread Starter
  • Thread starter
  • #16
Interested in Vehicle security, one of my friends had his Hellcat stolen from his house.
I was introduced to this company

ANTI-THEFT SYSTEM
does anyone have any experience with them?

Interested in Vehicle security, one of my friends had his Hellcat stolen from his house.
I was introduced to this company

ANTI-THEFT SYSTEM
does anyone have any experience with them?
I installed this system below. It is great especially travelling.

My dealer offered it. I didn't put it in when I bought it but went back a a month or so later and got it installed.


It simply will not go into gear unless it is disabled. Even if you knew what to look for I am told you will never find the immobilizer since it is wired into the electronics.

Last edited:
Things that go bump…. Front bash plate was from two different hits after an overly spirited exits from a wash. The FMI bracket skids, FMI diff skid and the FMI shock mount skids are taking some hits and doing their job. Probably would be less scrapes without them as they all reduce some clearance to provide great protection


I’ve got a variety of scrapes on the OEM gas tank, tranny and transfer case skids, but no significant damage. LCAs are taking some hits. Only one scrape on my winch mount from a very steep incline transition.

OEM modular bumper is untouched, but I had the ends off for quite awhile. I had scraped my rear bumper and especially the recovery hoops. I replaced it with ADD Rock Fighter and it’s clean (although I have bent the crap out of my license plate numerous times).

RCI sliders have taken a few drops and pivots, the powder coat is scuffed but no structural damage

I probably wheel my Raptor a lot more than most owners, but while I try to limit damage I’m a terrible driver, so stuff happens…. Here’s pictures of what you might expect as you plan your add ons…

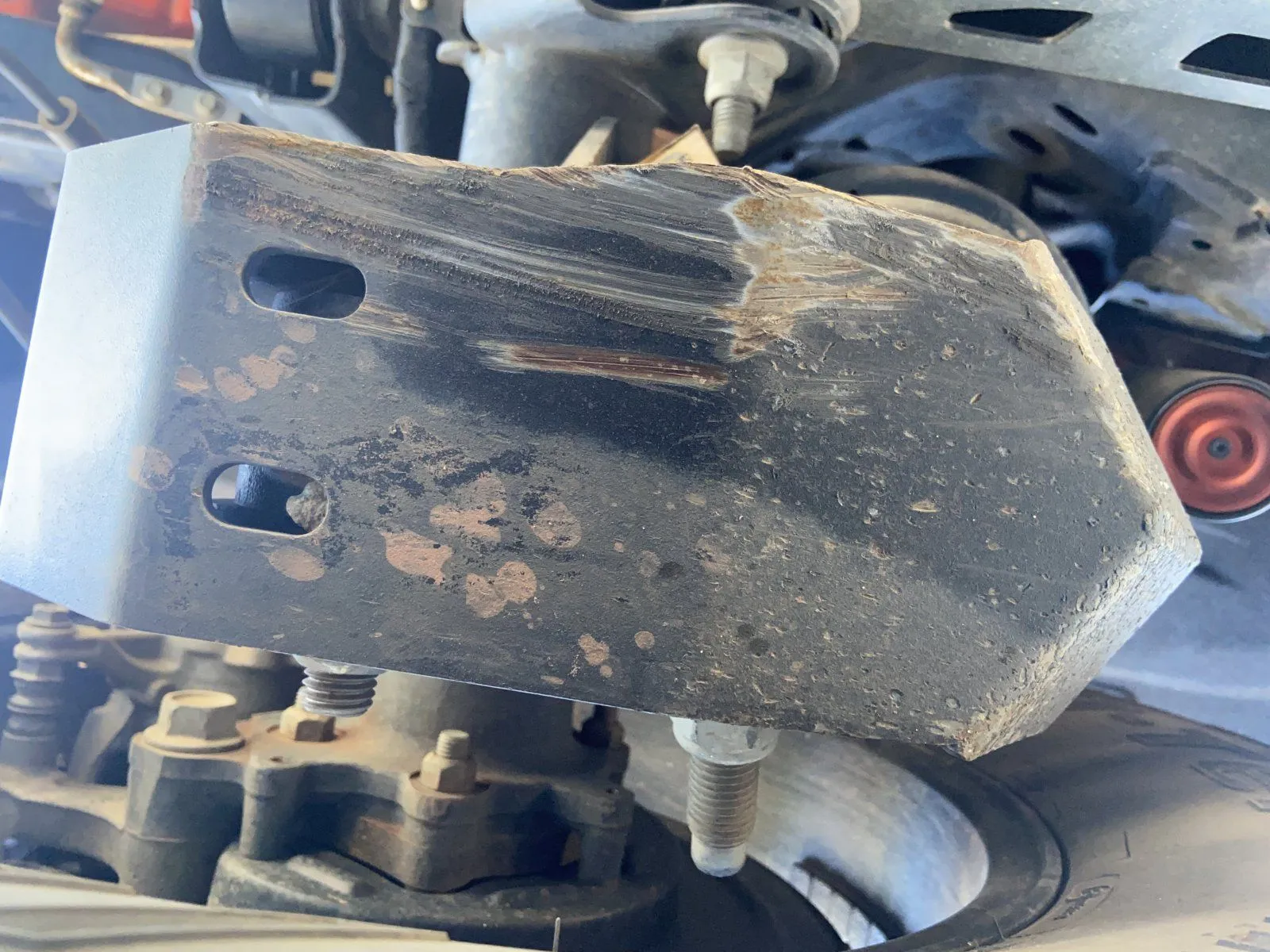

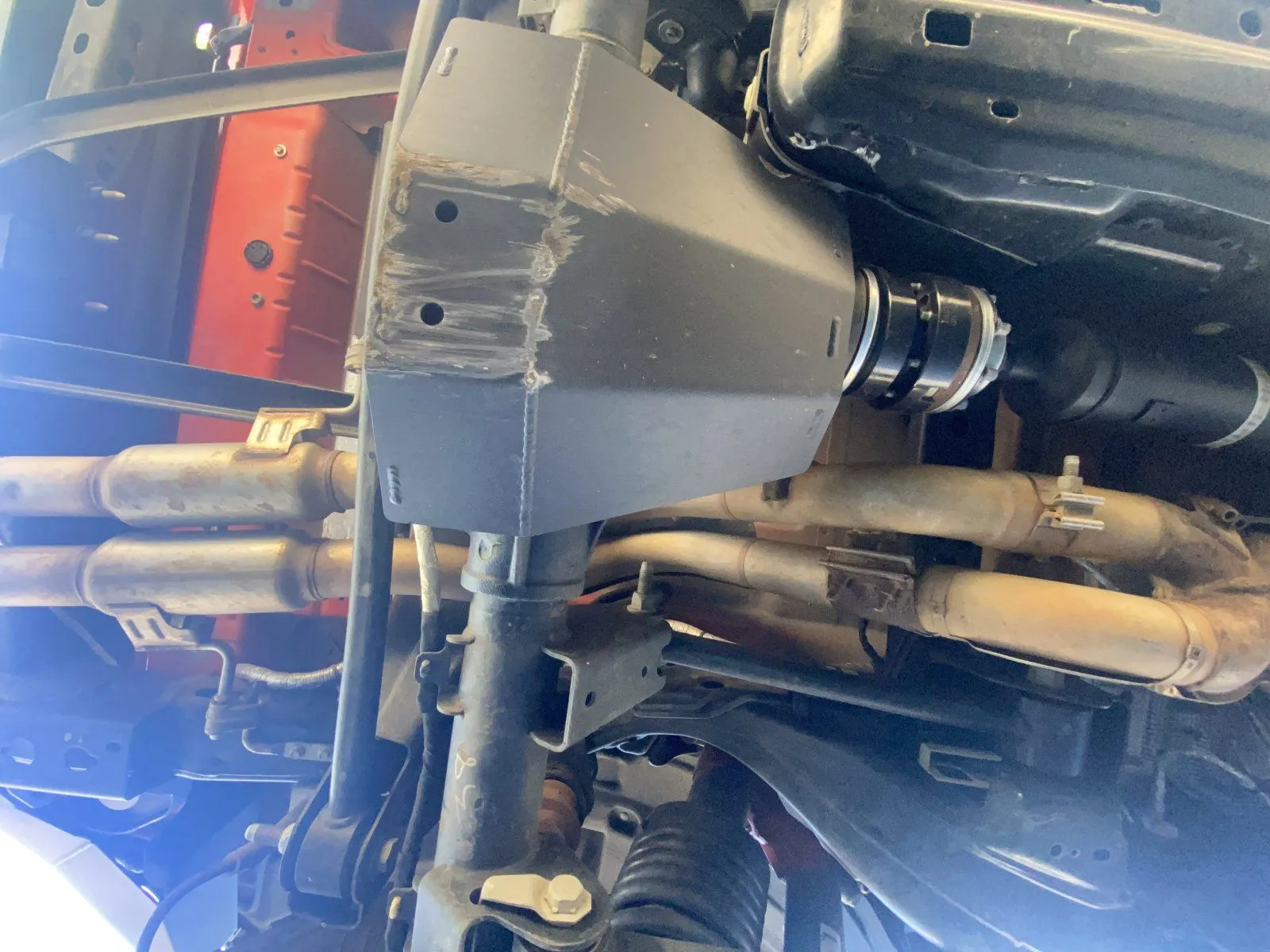

fMI shock mount skid
View attachment 12657View attachment 12659

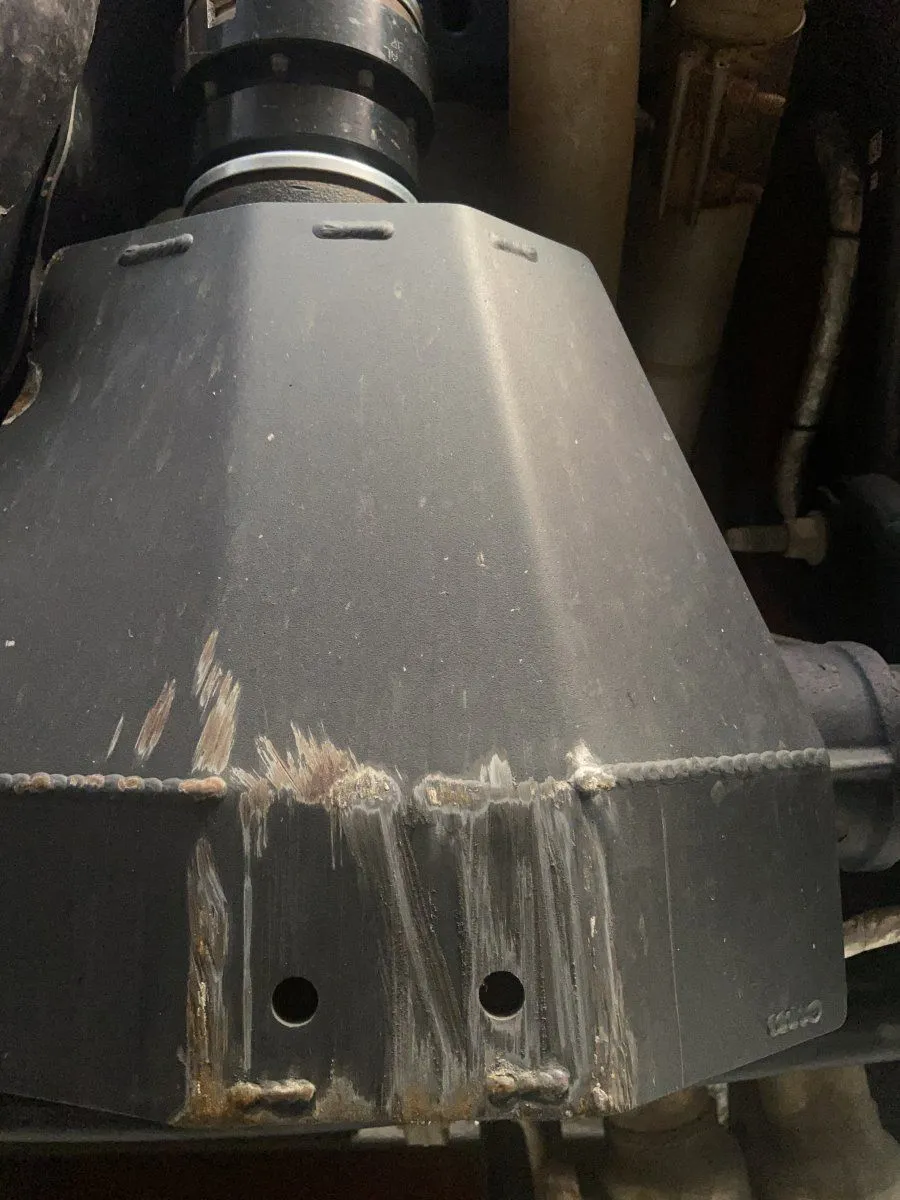

FMI Diff skid
View attachment 12660

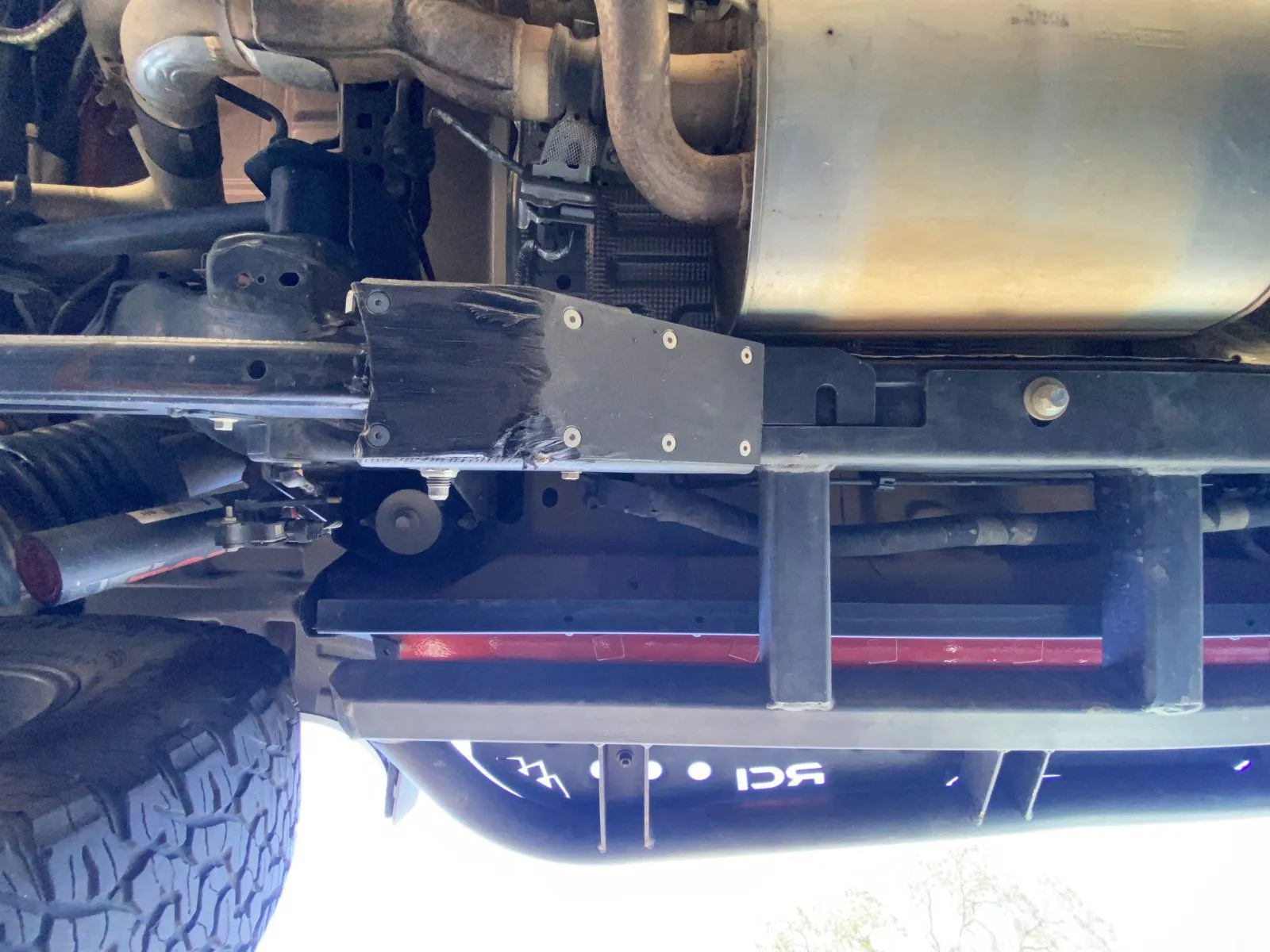

FMI lower control Arm skid and RCI frame mount slider
View attachment 12661

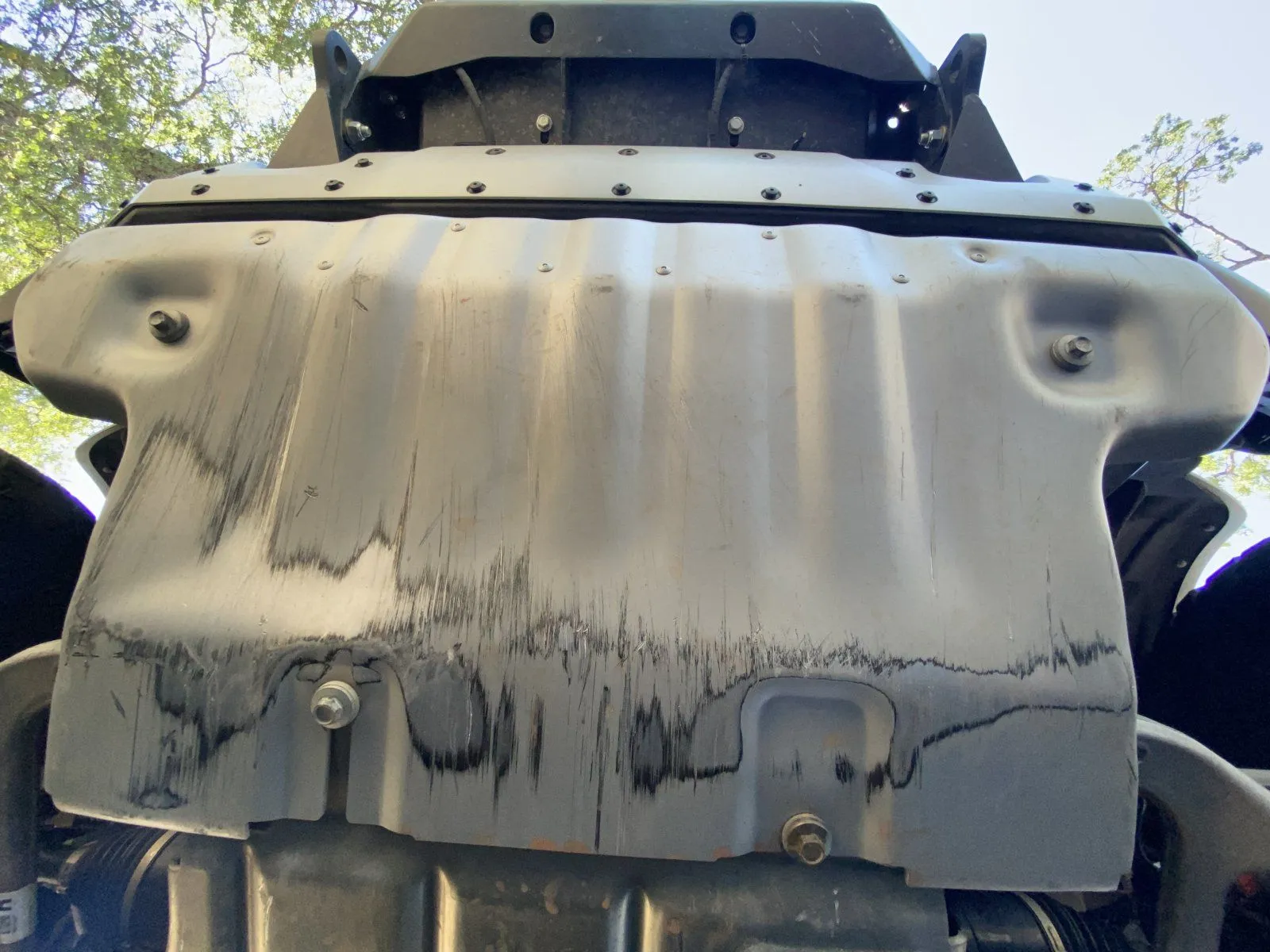

why I think painting the bash plate is silly…
View attachment 12662

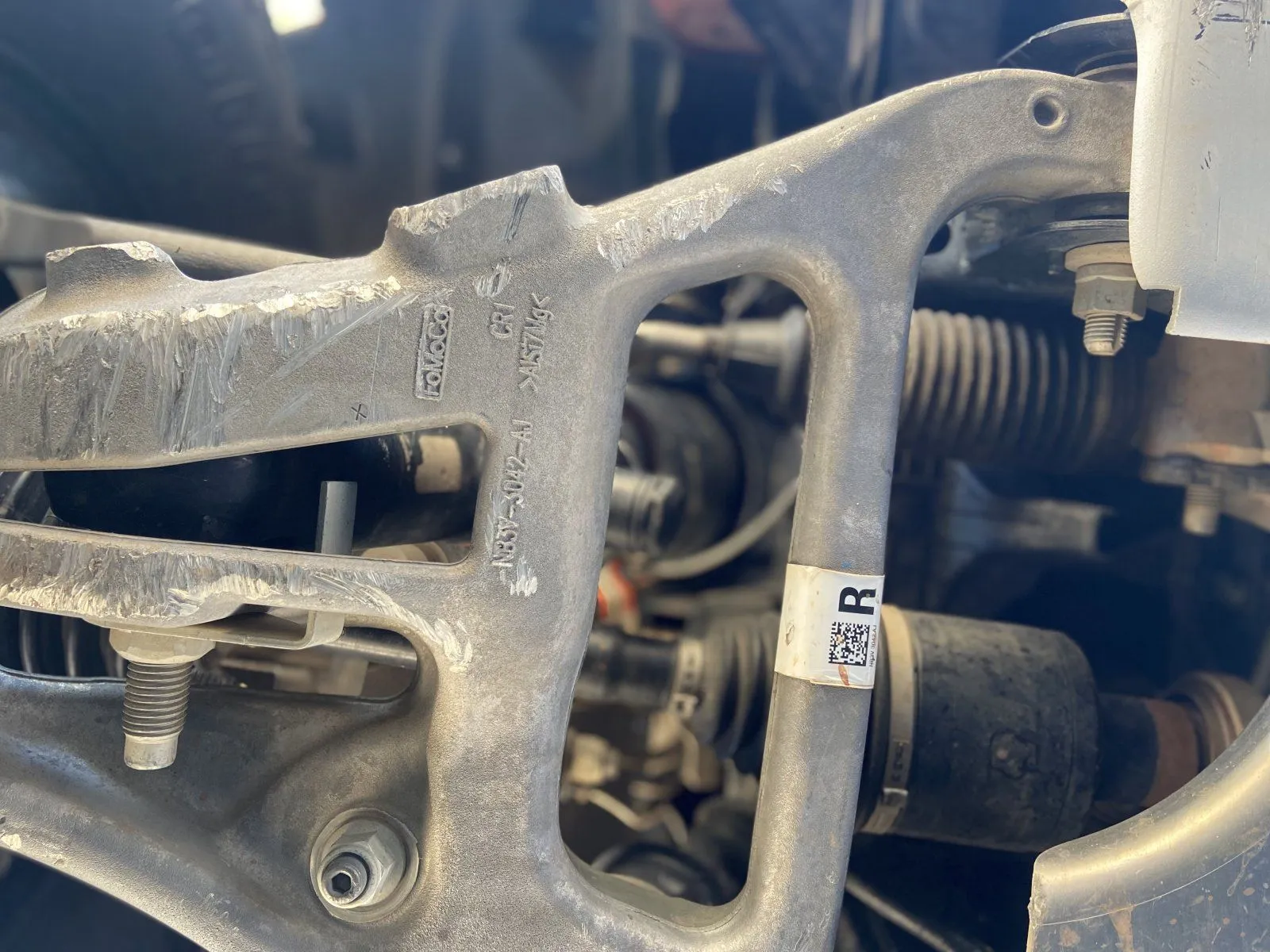

LCA the worse one by far
View attachment 12663

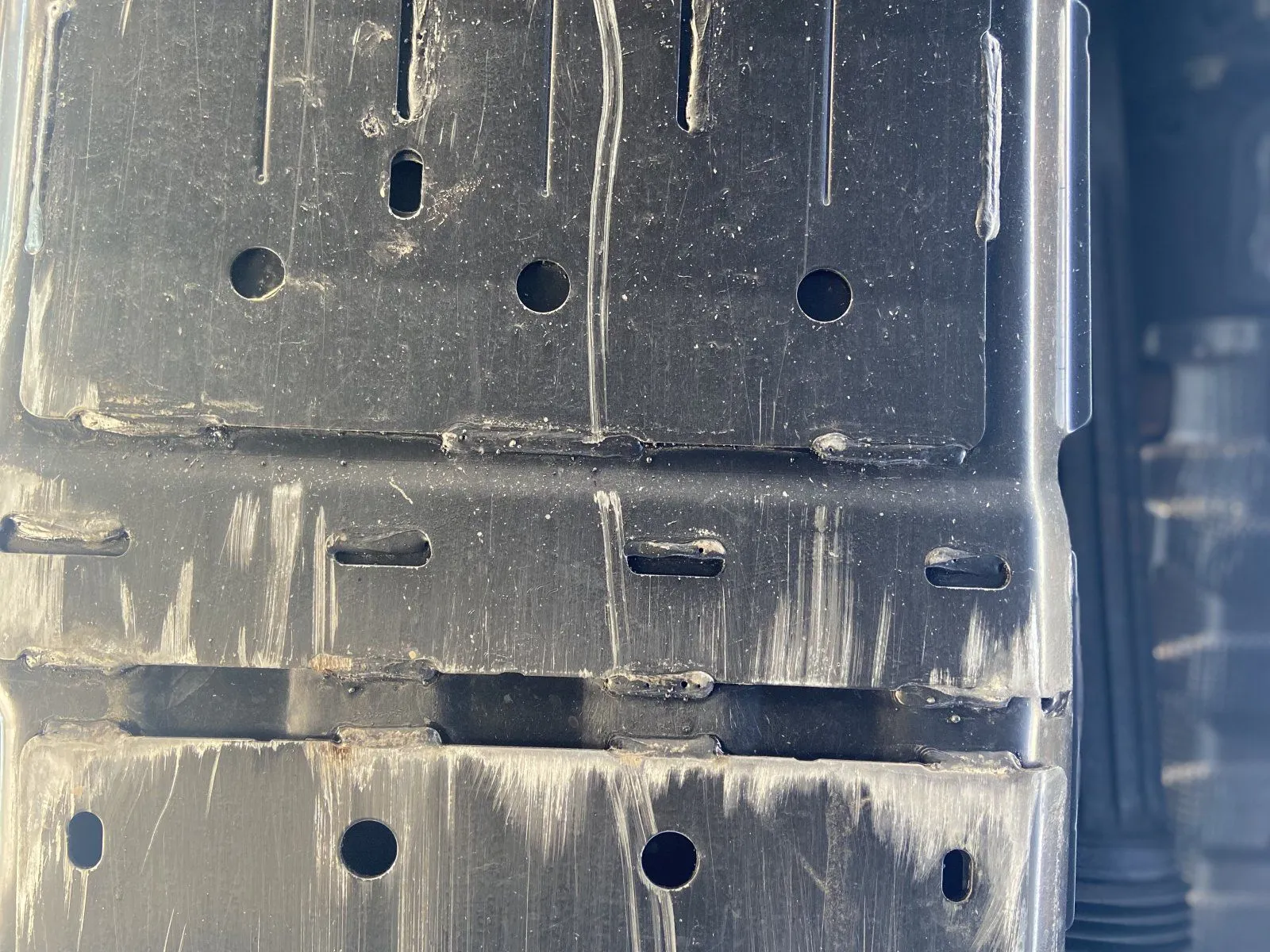

stock skids
View attachment 12664

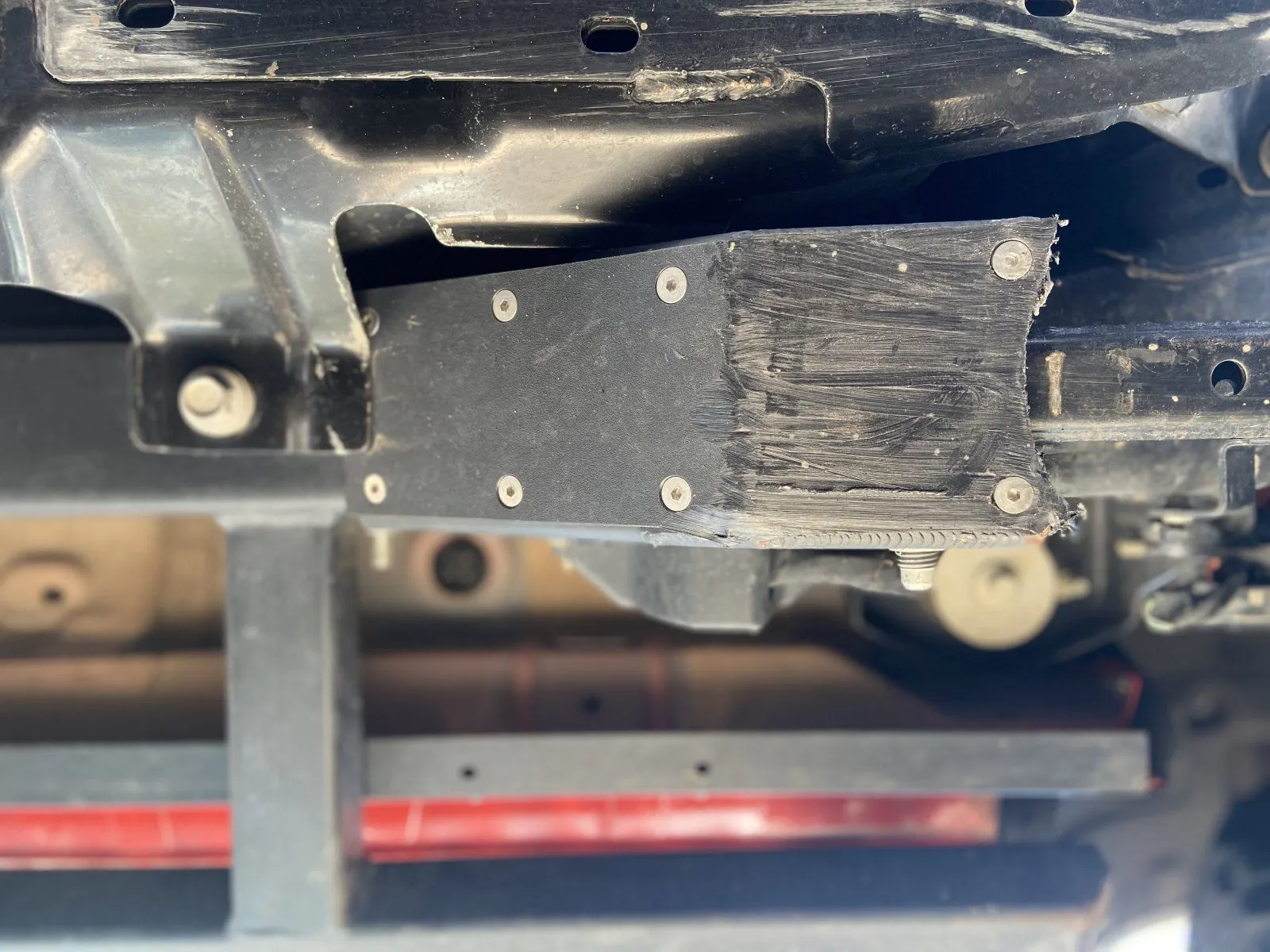

another FMI rear control arm skid
View attachment 12665

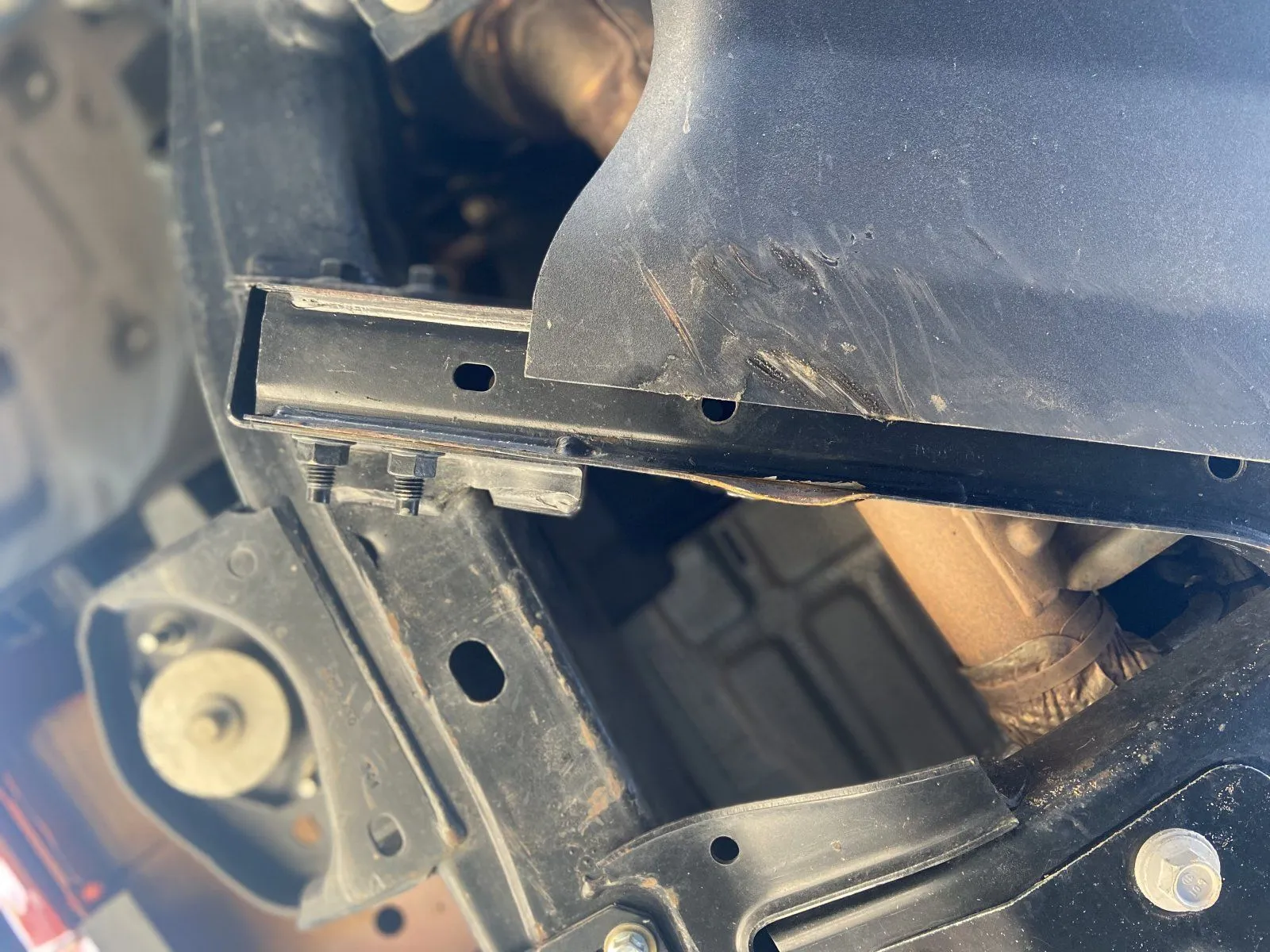

cross brace is exposed, OEM skids leave this exposed, but only one decent hit so far
View attachment 12666

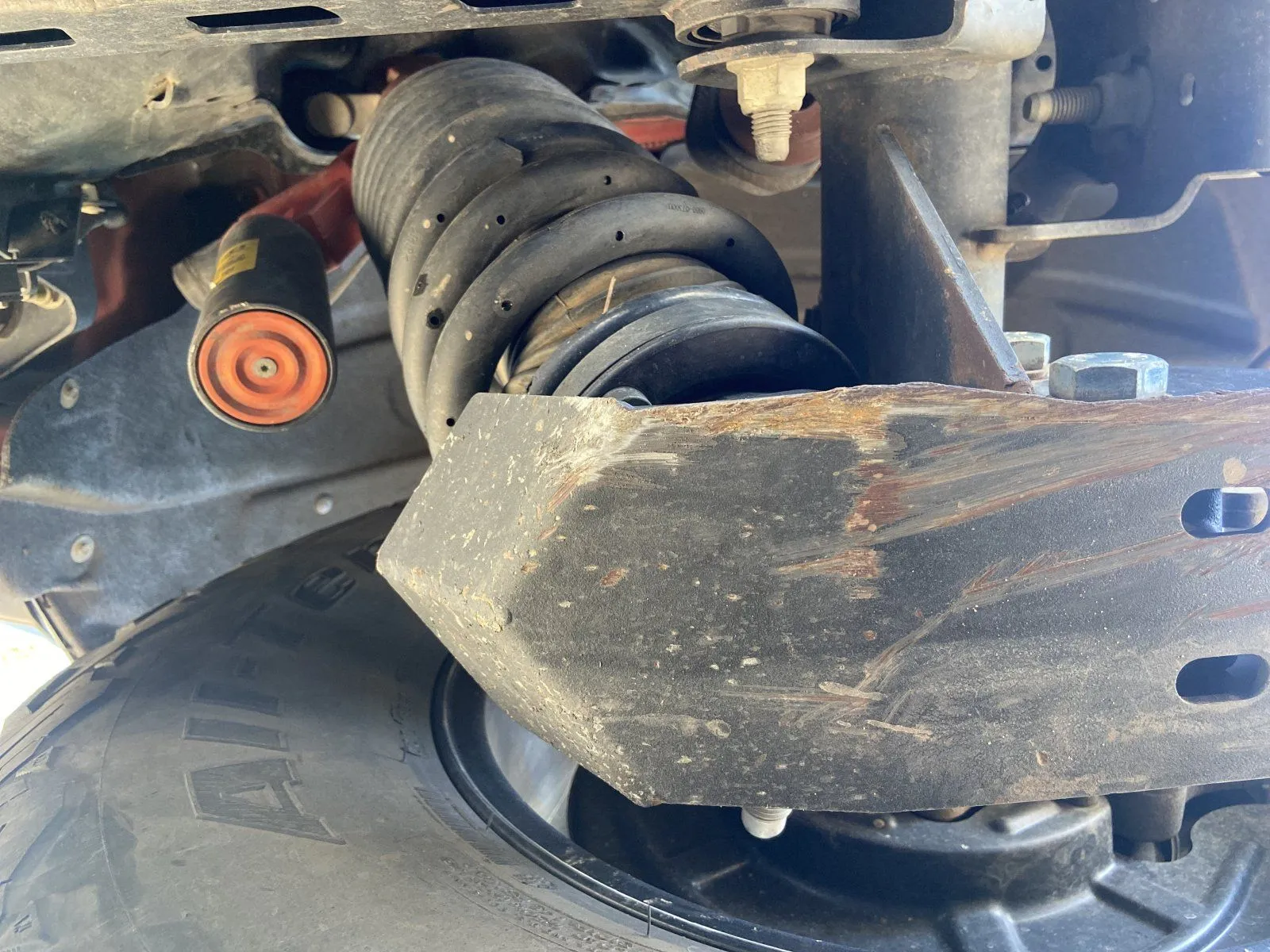

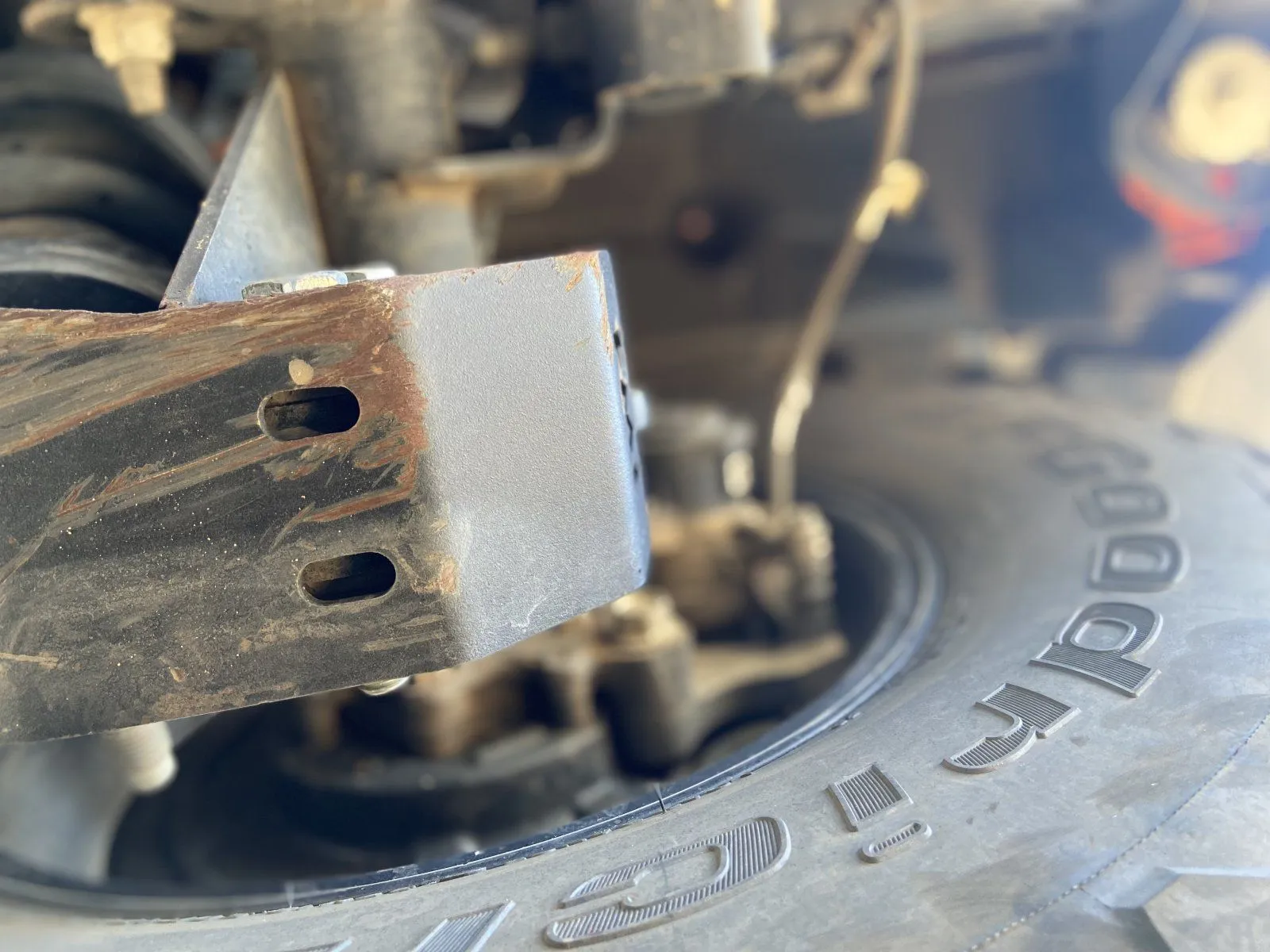

the other FMI shock skid
View attachment 12667View attachment 12668

That is impressive. I need to take a pic or two of mine. Less damage than yours so I can imagine what you have been doing. I thought I was pushing it.

Will do, just noticed this. I will do a quick write up very soon. Took some pics the other day under my vehicle to add to fun.
Ok, Paul Harvey, tell us which trails you were on
