The Bronco Raptor "Brap Flap" guards ready to ship!

[Motorpig27]

Well, they are Baja tested now! Thanks, Randy, much appreciated and I'm glad they worked as designed. Having someone else do a driveway install and run them through all types of Baja dirt roads/trails for a a ton of miles is a great way to test. I appreciate the feedback. It's nice having the confidence of knowing the sensors/arms and resi's are now protected. That was the goal!



[Sherpa111]

Email sent, add me to the list! Thanks



[Motorpig27]

Email sent, add me to the list! Thanks

You got it! Added.



[Sherpa111]

Thanks!



[Motorpig27]

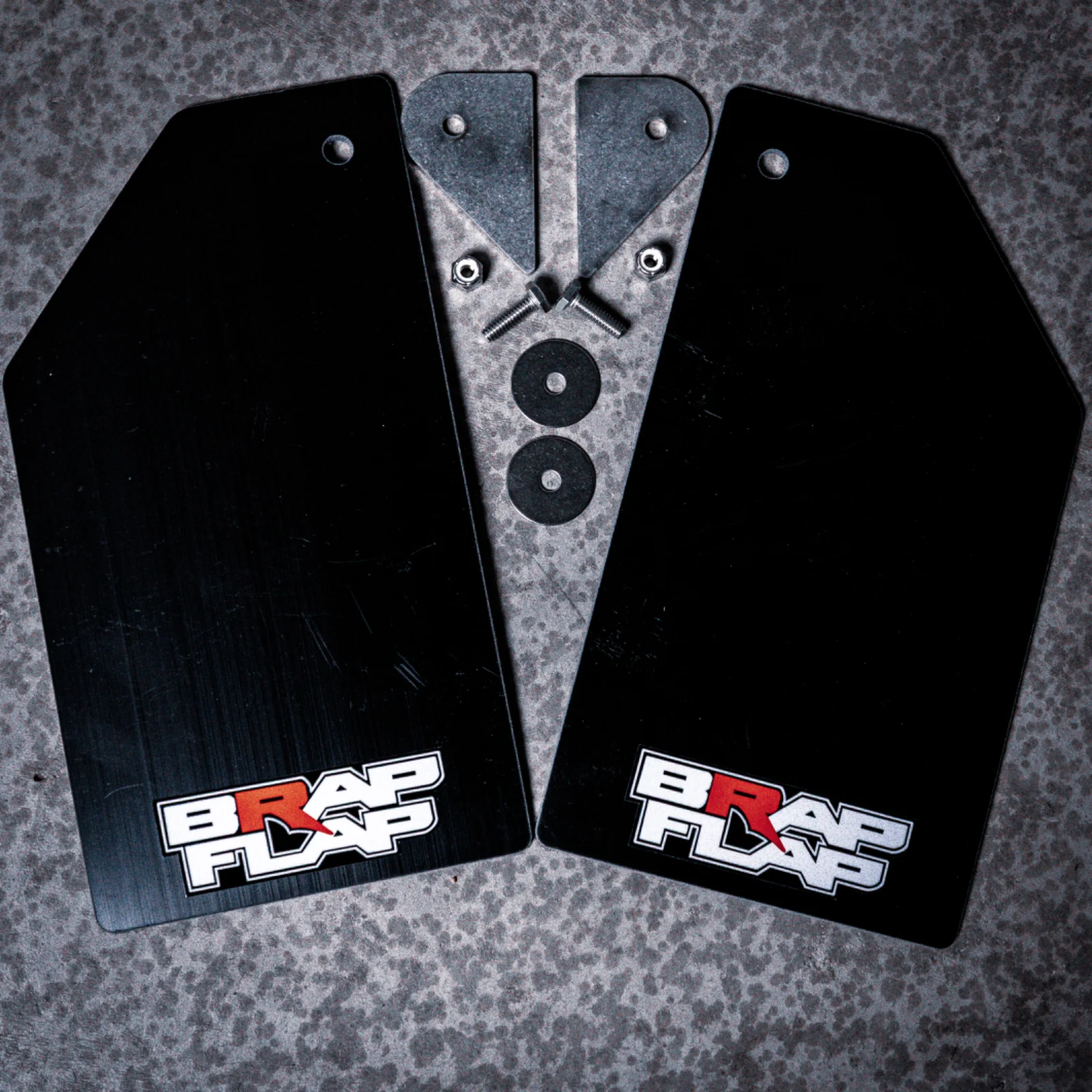

UPDATE: For those of you that have emailed me, I have your sets ready! I am super stoked how these turned out. I will contact you via email to get your addresses and I will give you my Venmo information. I can get them shipped on Wednesday, the 15th. I am building a basic website, which is not quite ready. Harder than I thought it would be, even to make it look half way decent, lol. Eventually customers will be able to purchase through the site and I will have install instructions and other info. If you did not email me to be put on the initial list, do so now at brapflap@yahoo.com to get your set confirmed. The mid flaps will have all stainless hardware , a zip tie and the decals will be separate from the mid flaps. Throw them on the back side, as pictured, or place them wherever ya want. The install really is super easy, and no drill. If you have any questions, ask away. Price is $110 with free shipping. Thank you!



[Bronco Flyers]

One of us still has new looking suspension components!!!
Exciting to see Lou get the BrapFlaps into production.



[Motorpig27]

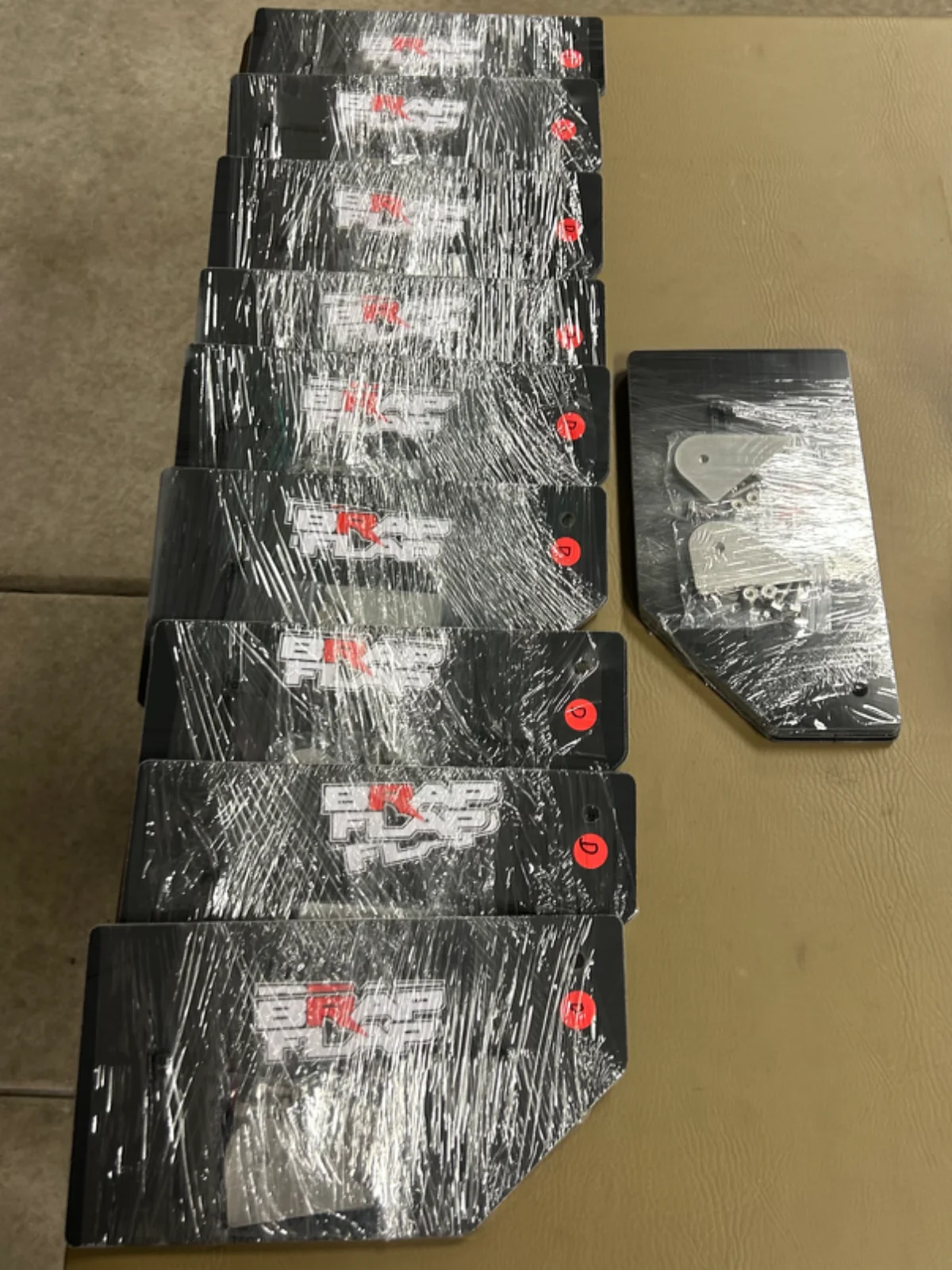

The first batch is all shipped, for those that ordered. I appreciate it! If you have any questions, ask here or email me. I am going to email everyone that ordered a video install link. I'll get regular instructions with pics soon. Really not needed, as this is so simple, but why not. I have another batch ready to go now, if anyone is interested.



[Motorpig27]

Figured I post some simple pictures of install for future access. I am making written instructions, too. Getting there, lol!

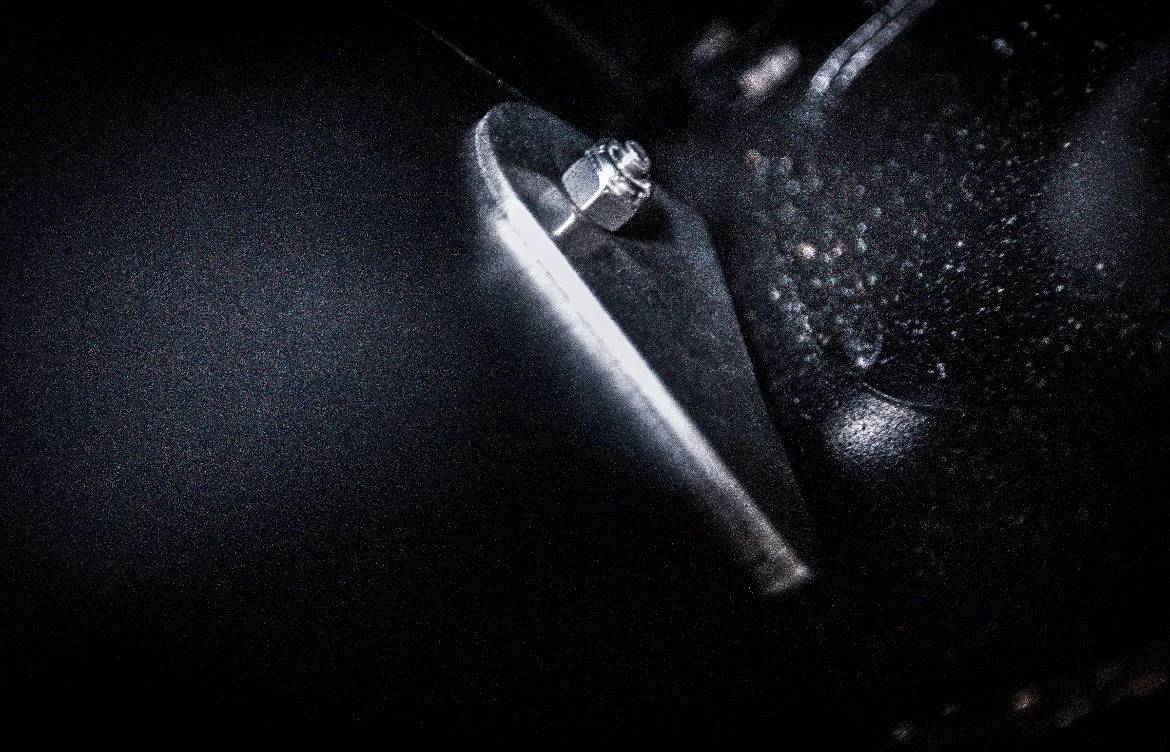

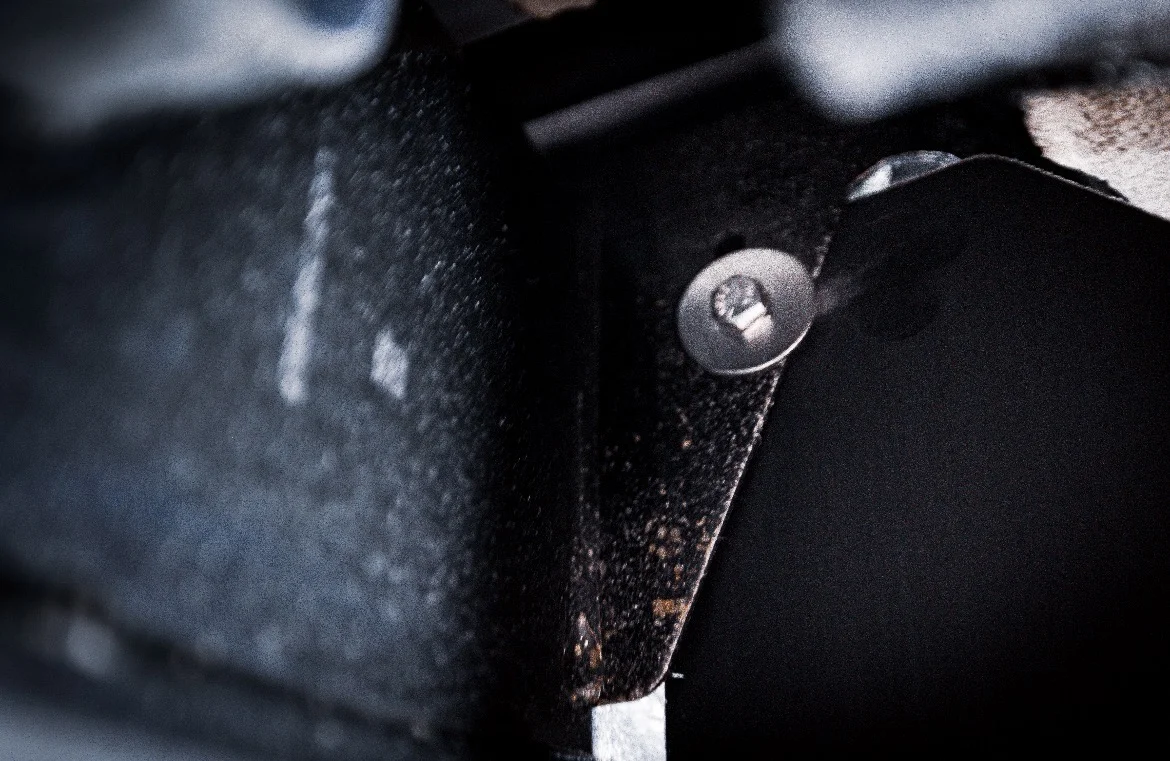

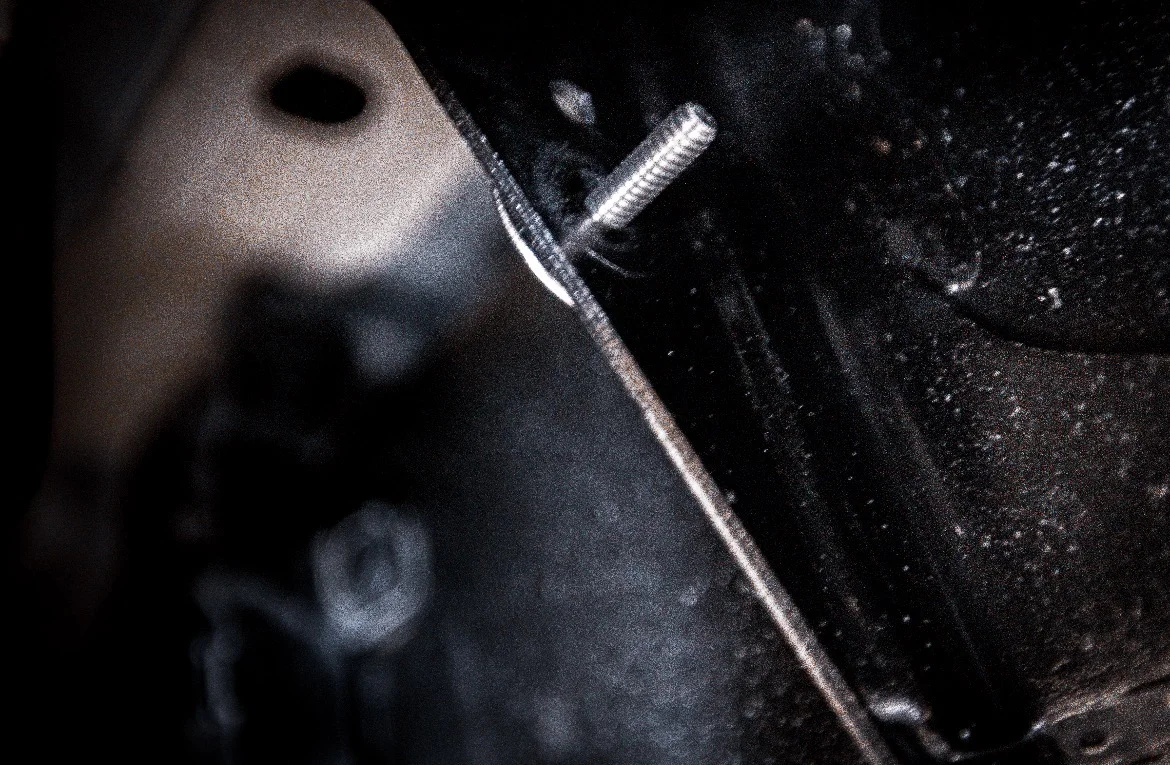

Mount the flaps on the inside of the body mount. Put the bolt through the larger lower hole. The rear washer plate needs to be pointed down and the flat section against the frame side and lined up with the flap edge. Tighten bolts snug. Done.



[Motorpig27]

And a short video install link for passenger side wire loom. Super easy stuff. I'll change my YouTube settings later.



[JohnGalt27]

Just received and installed mine

TLDR folks: I like them, but you may want to take them off in big rocks just in case.

Initial impressions:

Package arrived nicely packed, complete and quick for USPS. I like that logo stickers were included, but not placed on the flaps. Saved me a step.

Install video was very detailed and helpful but lighting made it difficult to see orientation of the parts. Two or three well lit front and back pics above explain almost everything pretty well.

They install pretty dang easily……..unless…….you have RCI pinch weld covers installed. The covers are “L” shaped with the horizontal side projecting inward an inch past the seam. This conflicted with the Brap Flap. The Brap Flap touches my FMI rear lower arm skid hardware as well, but it’s not an issue.

Ultimately I removed the rear half of my seam covers (for now) on both sides to complete the install. Now I’m deciding whether to permanently remove the covers or cut short slots (about circular saw kerf width) in them.. The covers look great and never had an issue, but there was a lot of silt imbedded between the cover and seam, long term that may be rust inducing.

The only issue I can currently foresee is using these things on boulder infested trails like the Rubicon. The flaps have some flex and they will contact the rear ride height sensor linkage attached to the rear lower arm. If you hit the wrong rock in the right place. Probably won’t happen, but the weirdest stuff happens on trail.

All that said, it’s easy enough to take them off whenever you’re going to take on a significantly technical trail. It’ll cost you a zip tie.

After installing them, I can envision a better solution for me using a HDPE flap with somewhat similar hardware mounted to my RCI slider frame brackets. They would be mounted a bit more midship, a little wider and can stay on full time. But I’ll spend more money in parts, gas, mistakes, etc and time doing that than it cost to buy these.

The Brap Flaps are good value if you want protection from rock/grit abrasion for your rear suspension.

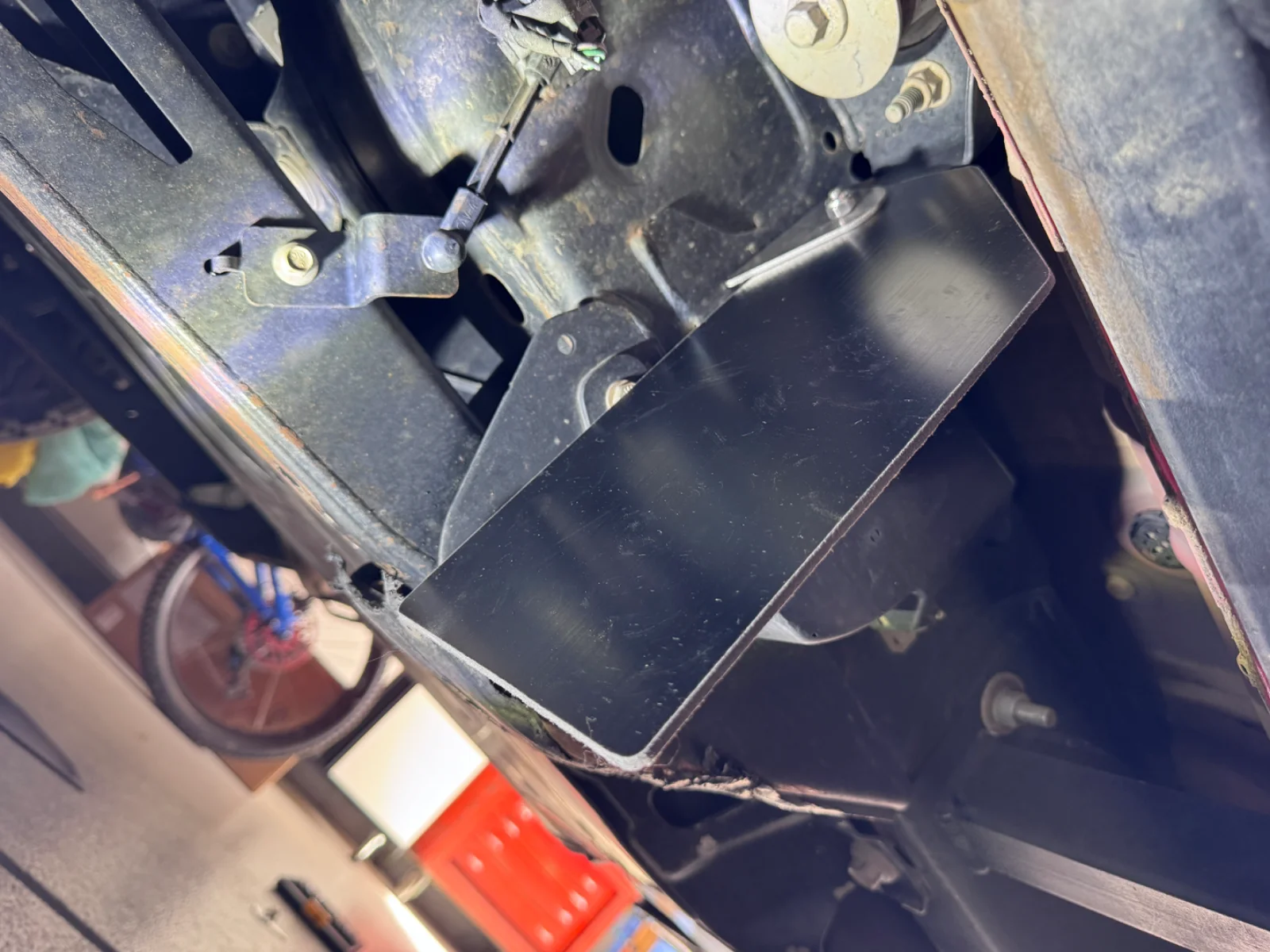

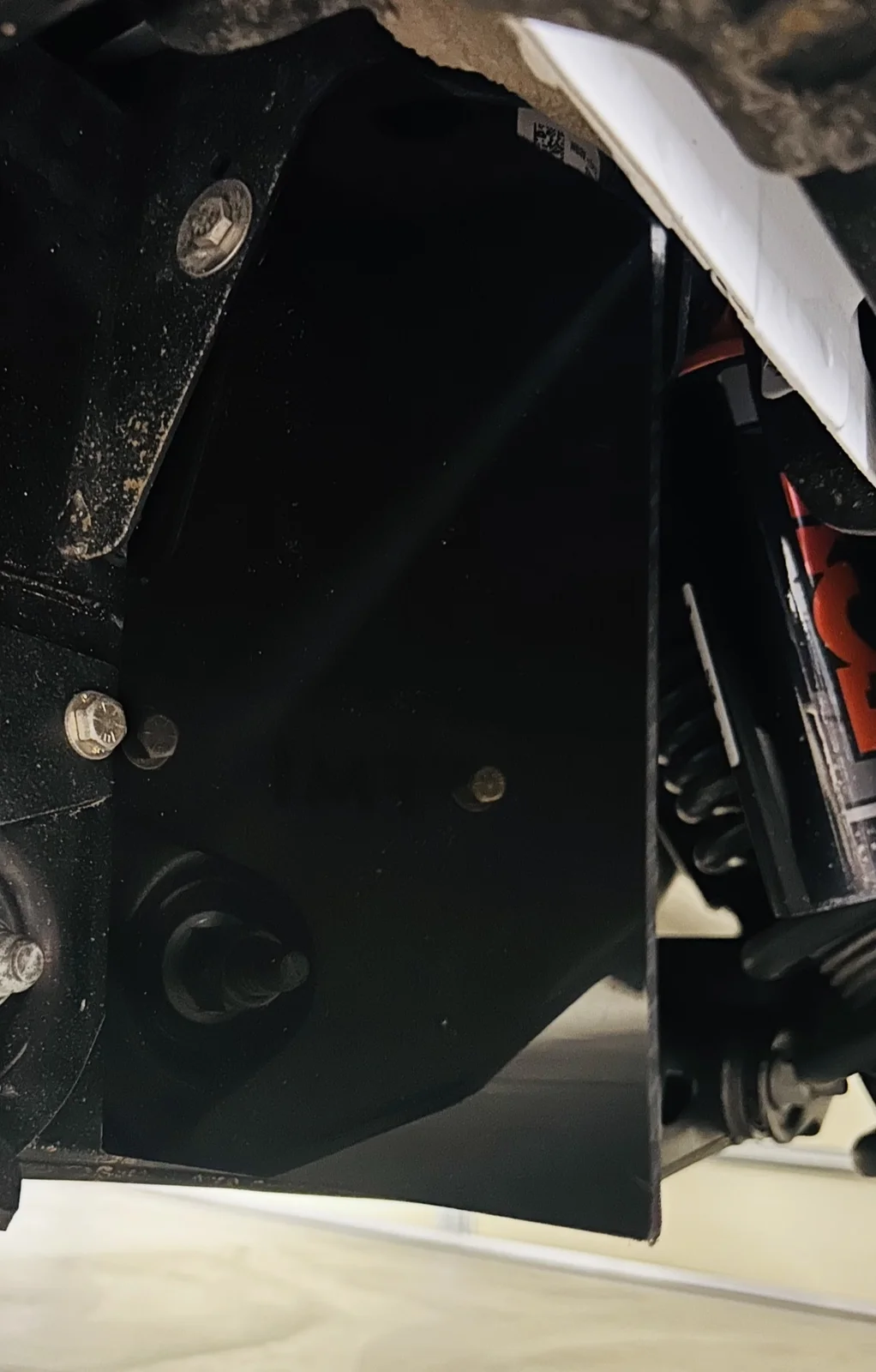

Installed passenger front view. I haven’t used my zip tie to secure the loom yet, may take them off if I decide to modify.

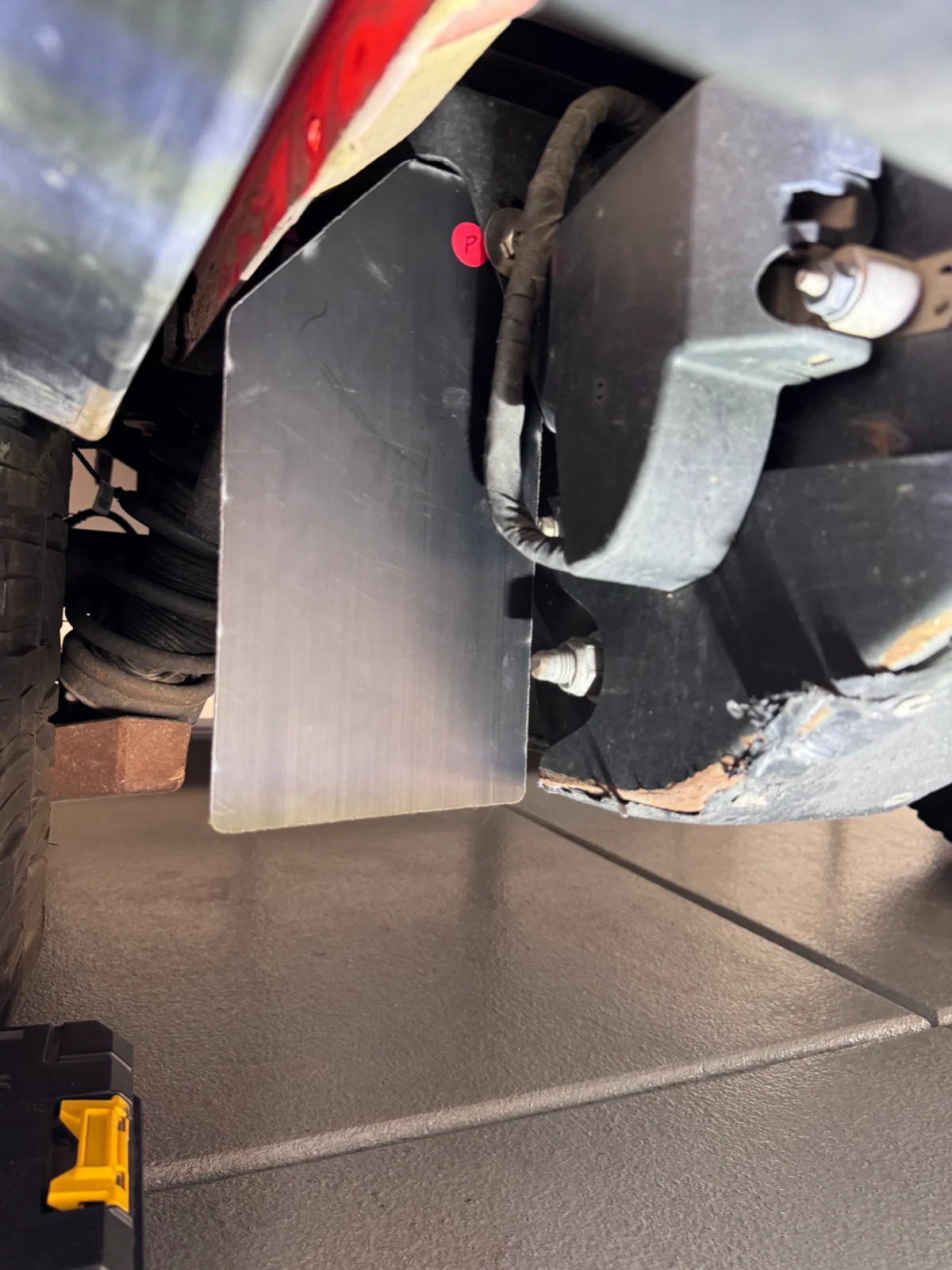

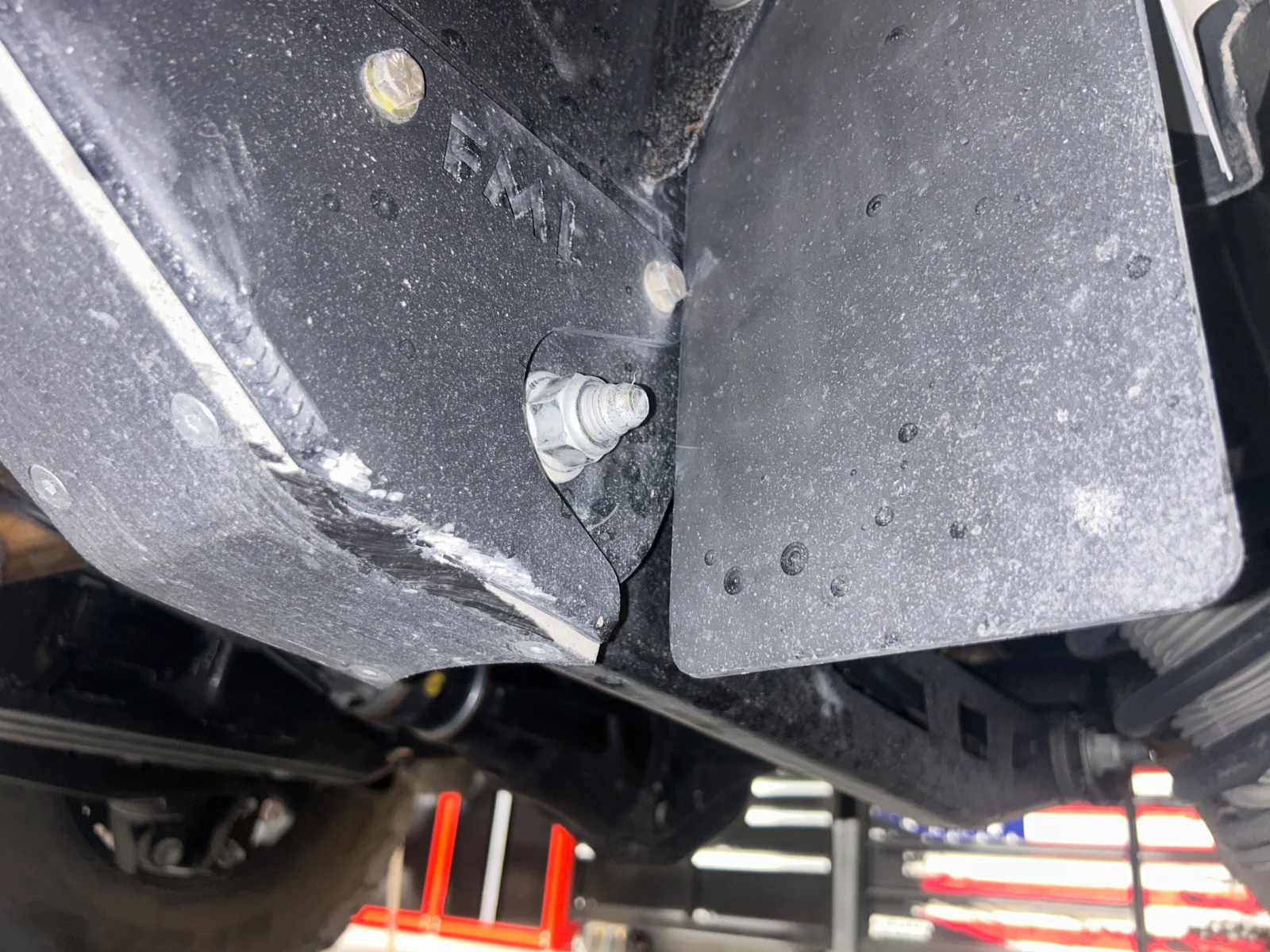

Installed passenger rear view

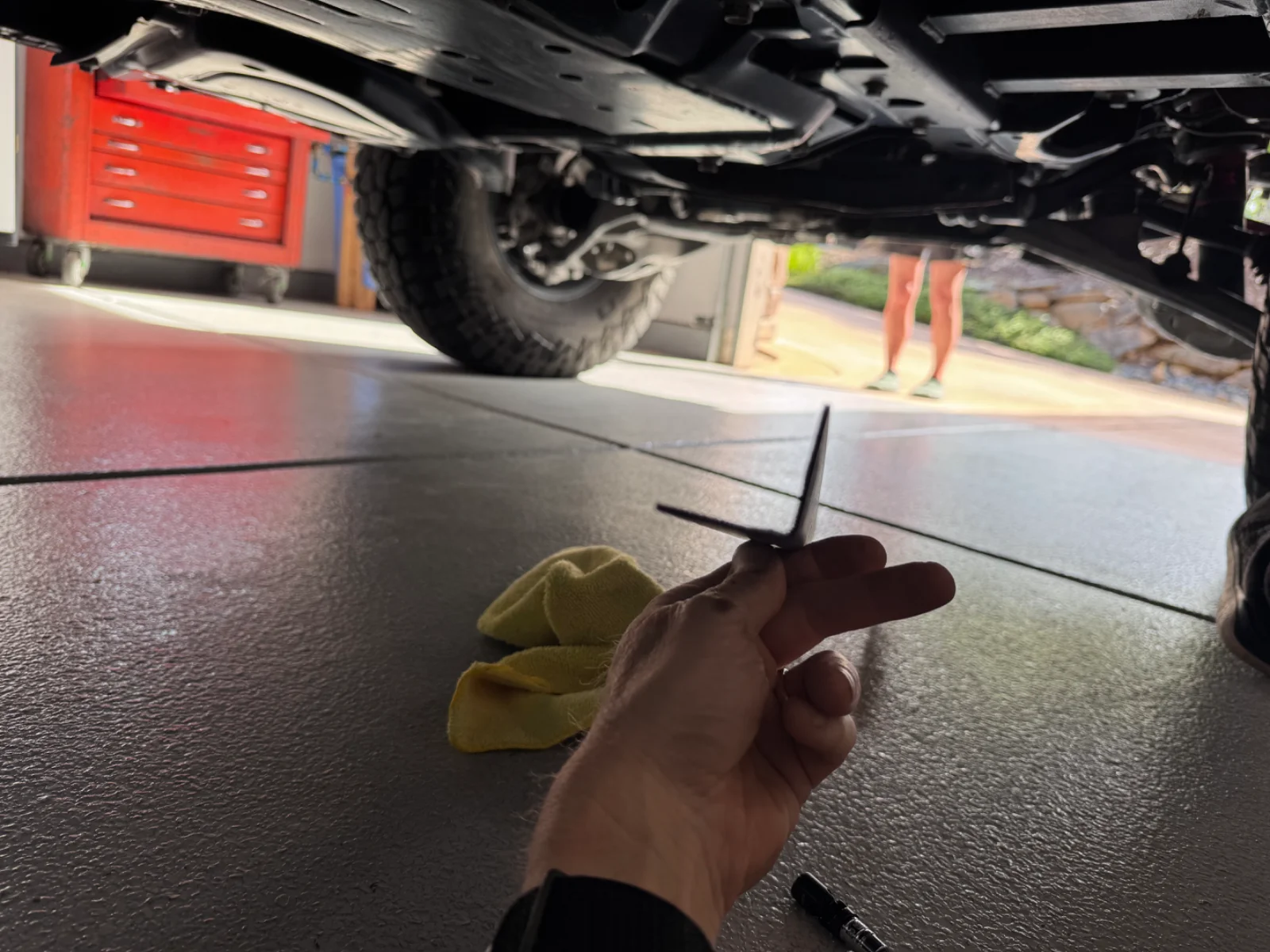

Pinch Seam cover

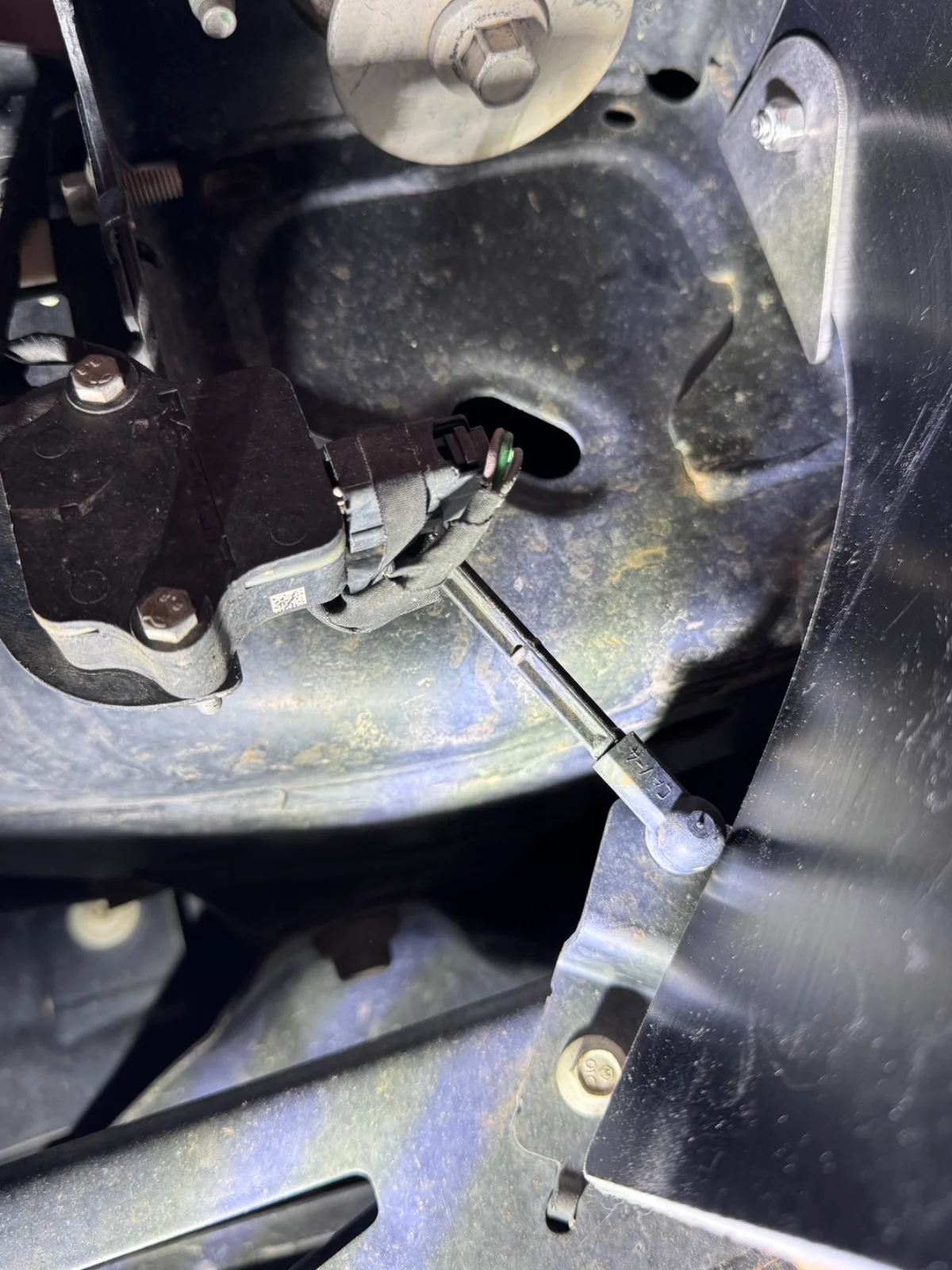

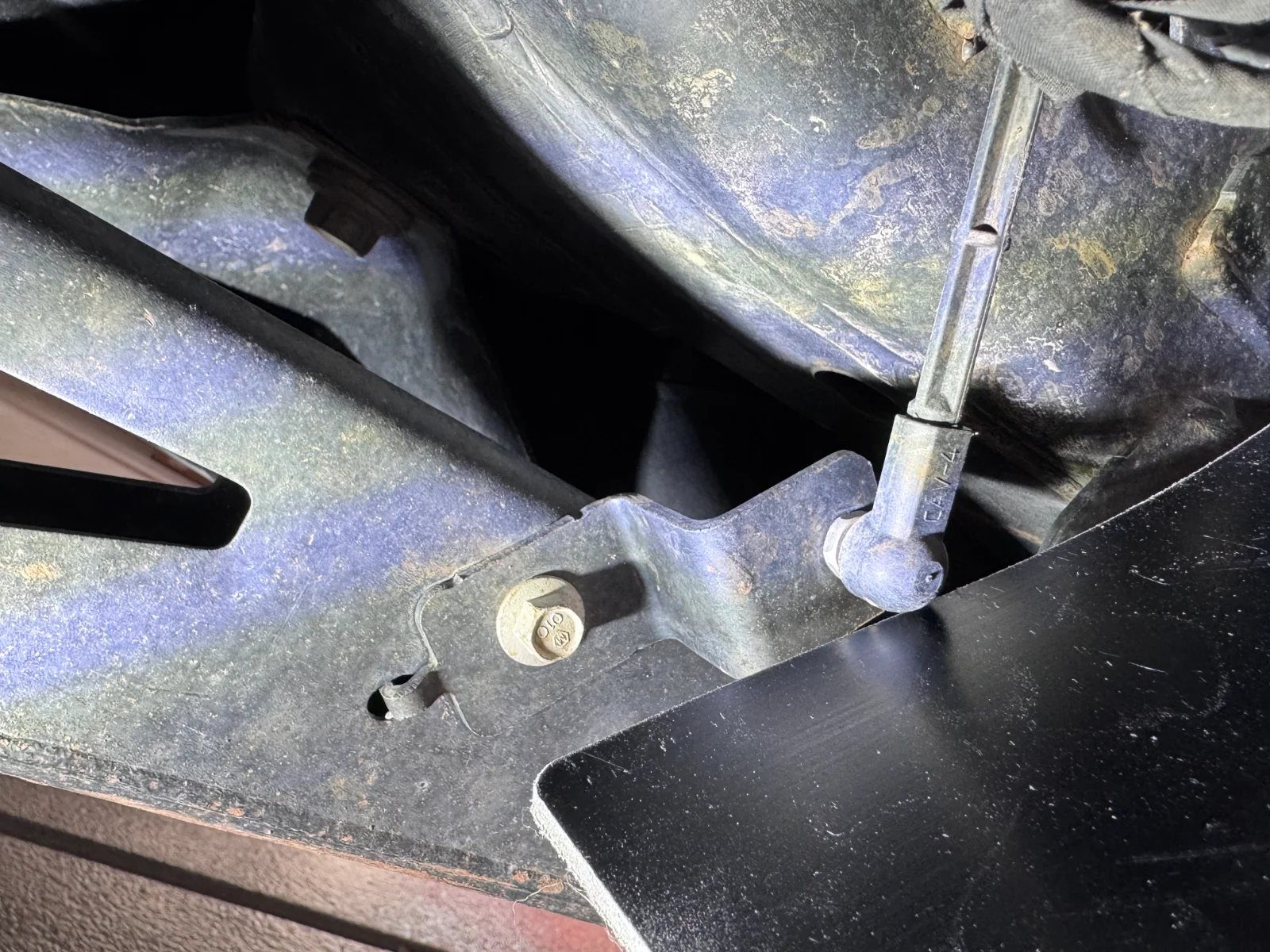

Flap contacting sensor linkage when pulled straight back

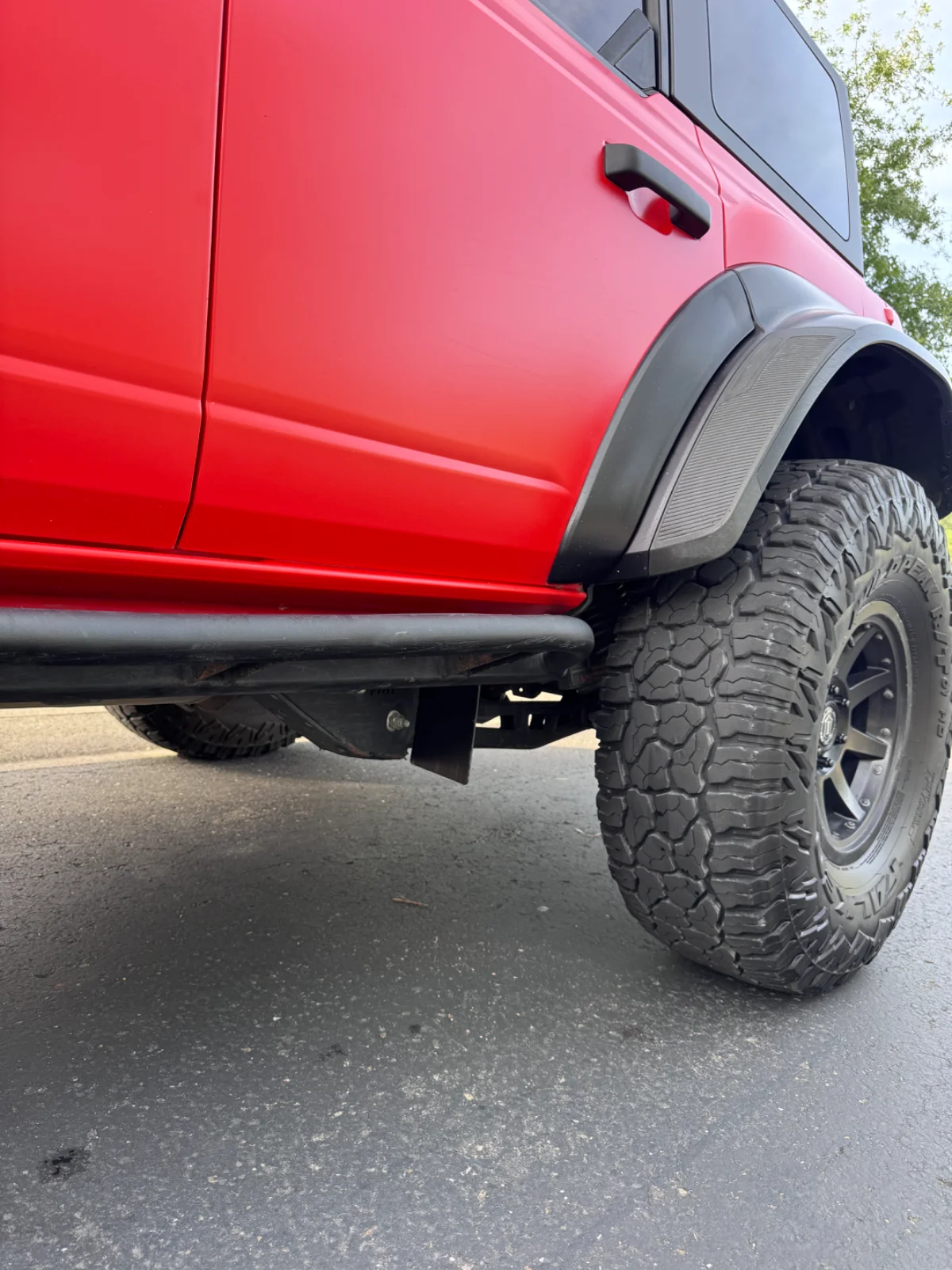

Flap is very discrete



[Motorpig27]

That's what I like to see. Try em in the big rocks. These were made for desert running, but, I kept the length to the control arm mount to avoid rocks for the rock crawlers. If the flap actually ever hits the sensor arm, chances are you would hit the arm without it there ,anyways. I haven't been able to hit them yet. But, like you said, weird shit happens. I know how you wheel, so give them a run and report back. As you now know, they can be removed in a couple of minutes if they if you think they may interfere in the boulders. Then replace after. I appreciate the feedback!



[Godzilla1]

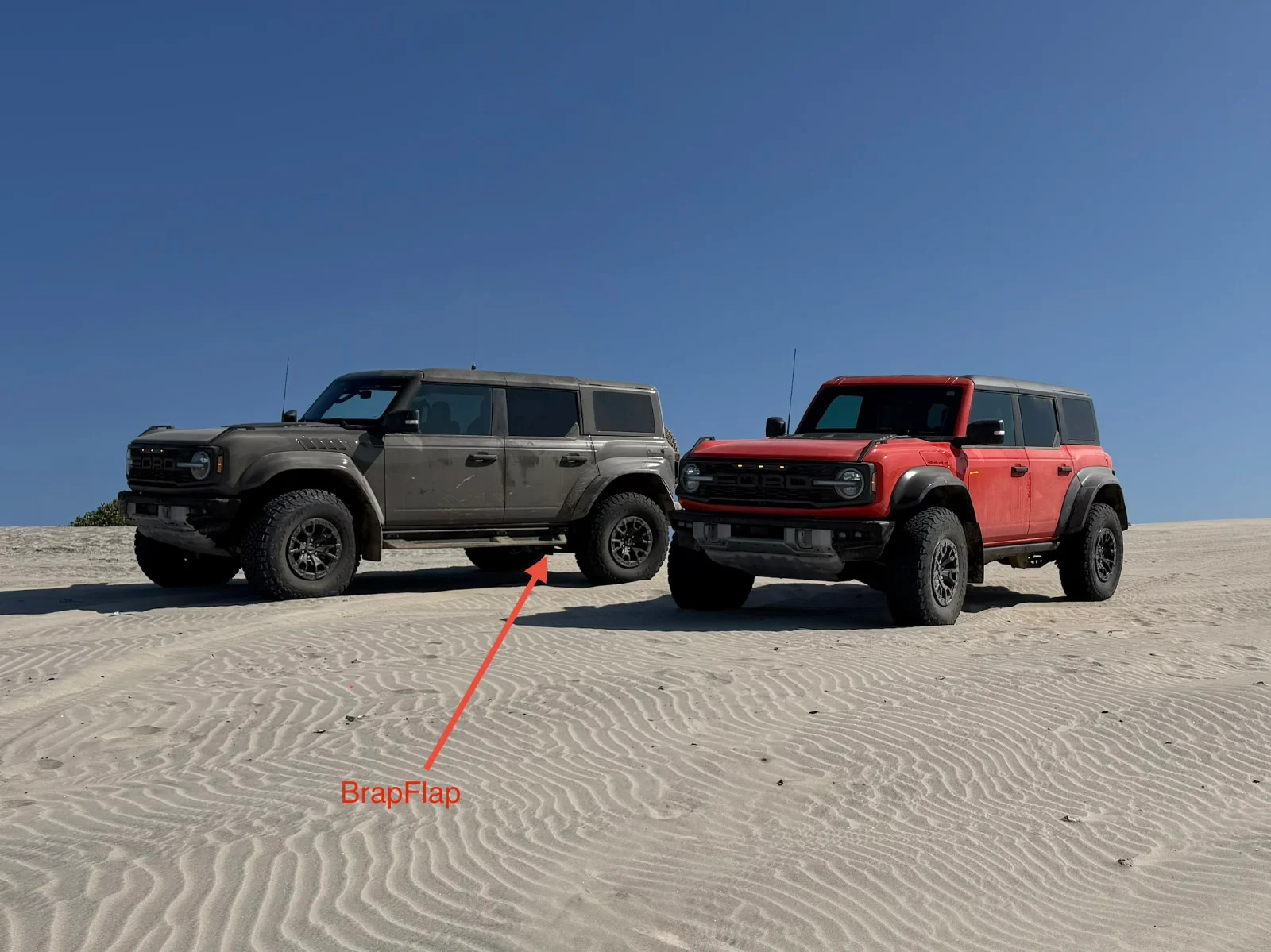

So I met up with Lou and installed his newly updated BrapFlap in his driveway. Very easy install. The only thing I disliked, was the dried mud that was still there falling in my eyes! I do a little bit of rocky stuff, but nothing that intense, so I will see if they actually hit any rocks. Over all, I like the design and I feel they will protect the sensors and shock reservoirs. Which is exactly what I was looking to purchase when I first bought my Bronco back in October. Here is a little video I made to show the flaps installed.



[Motorpig27]

Thanks Bud! Appreciate the post. I feel all Braptors should have these, just because of the needed protection. Great video, too. Hell ya! Look in the mail, I sent ya some extra stickers.



[Motorpig27]

Update: The website is up! Brapflap.com. Just a simple site because of having one product, lol. Right now you can Apple Pay, I'm waiting for the rest of the payment options to be approved. I will edit it some more when I have more good content. Also, I did an IG page @brap.flap. Trying to get the word out, so I do appreciate anyone that tags it on their posts. I'm also in the process of becoming a site sponsor here. This is a great site because it has more true off road enthusiasts, including awesome moderators, which I can respect. Again, thank you!



[Big Guy Racing]

Update: The website is up! Brapflap.com. Just a simple site because of having one product, lol. Right now you can Apple Pay, I'm waiting for the rest of the payment options to be approved. I will edit it some more when I have more good content. Also, I did an IG page @brap.flap. Trying to get the word out, so I do appreciate anyone that tags it on their posts. I'm also in the process of becoming a site sponsor here. This is a great site because it has more true off road enthusiasts, including awesome moderators, which I can respect. Again, thank you!

Order submitted. Was wondering when something like this would be available.



[Motorpig27]

Awesome! And shipped. I'll try and get them out same day or next day, if during the week. Appreciate your order



[Motorpig27]

Alrighty! The Brap flap website is up and running. Very basic site, but payment options are finally available. Even Paypal. I appreciate the support here. I have about 15 sets out in the wild now. I have 10 sets left of the original batch at the current pricing. I predict a small price hike eventually, due to costs. Being honest, this first batch is a break even type of deal for us. I did some rock crawling today with some Jeeps and Godzilla(member here and Brap flap equipped, too)and made some contact and the flaps were not phased. Flexed as designed. Have a great week ahead!!



[Motorpig27]

Just a quick update. I sold out of my first batch! Thank you to those here that purchased them. It is greatly appreciated and I'm glad I started here first, mostly because those here actually off road a fair amount and this is a great site. And for those that gave me some shout outs on other platforms, social media and so on, thank you! Trying to get the word out organically and through customer generated content. I am going to make another larger batch soon, so be on the look out! The website is the correct way to purchase at this point and I am still working out some things, but all is flowing well. Have a great weekend!
